Tech talk: Peace of mind with the EZVIZ EB3 Smart Home Battery Camera

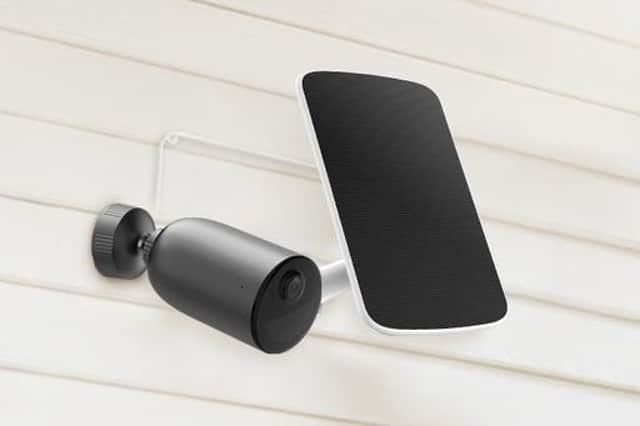

The EB3 needs neither base station nor hard wiring. A full charge can last 120 days but the EZVIZ solar panel ensures continuous charging provided it's sited where it can receive plenty of sunlightThe EB3 needs neither base station nor hard wiring. A full charge can last 120 days but the EZVIZ solar panel ensures continuous charging provided it's sited where it can receive plenty of sunlight
The EB3 needs neither base station nor hard wiring. A full charge can last 120 days but the EZVIZ solar panel ensures continuous charging provided it's sited where it can receive plenty of sunlight
PEACE of mind, and a piece of cake to install. That’s my opinion of the EZVIZ EB3 Smart Home Battery Camera.

A big fan of home security specialists EZVIZ, I recently reviewed their eLife BC1C 2K+ battery-powered home security camera which now sits proudly on my back garden wall, so far successfully deterring any ne'er-do-wells with its powerful lights and my booming 'get off moy laand!' personally-recorded message should anyone set an unsolicited toe across my threshold.

So for the front of my property I was keen to assess the similar-looking EB3, which EZVIZ says is a step-up from its predecessor with ultra-clear 2K vision for advanced detail capturing and its night vision with far-reaching colour nocturnal views of up to 15 metres.

Hide Ad
Hide Ad

But before going into the tech side of things, just a few words about set-up. Like its sister cam, I deemed it important to site it well above head height to deter any interference, so ideally it should be fixed at least level with your upstairs windows.

Speak to delivery people even if you're away from homeSpeak to delivery people even if you're away from home
Speak to delivery people even if you're away from home

A one-off bit of wall-drilling is necessary, but before you do so, it makes sense to first test that the camera can access your wifi clearly from your chosen spot.

Ensure you've given your camera that extra bit of juice via the included cable and your own charger plug, as you never know the amount of power the camera already has. Mine was only at one per cent so needed a good half-day to fully charge.

Once you accessed the settings and checked the battery level is at 100% you can now download the EZVIZ app from the iPhone App Store or Play Store for Android phones, press the large '+' sign top right to add a device, scan the QR code on the camera or included quick-start manual, and then follow the wifi connecting prompts.

Hide Ad
Hide Ad

Once connected and you can see the camera's images on your phone, you can mount the camera base to your outside wall which will need affixing with two screws (6mm drill bit did the job for me).

You can set up your own voice message warning to deter intrudersYou can set up your own voice message warning to deter intruders
You can set up your own voice message warning to deter intruders

I have to say at this point that with its predecessor there was also a magnetic half-sphere mount option which the metallic base on that camera could then attach to. This has been dropped in favour of a plastic camera base and the screw thread which is more secure, but not as handy for quick release.

So with set-up complete after only a few minutes, what can this camera do?

Thanks again to its two spotlights, nothing will be missed, however dark it may be. What's even better, homeowners can choose between the colour mode or the infrared mode, as preferred.

Hide Ad
Hide Ad

Integrating a PIR sensor, the EB3 camera can distinguish people from pets or even a flurry of autumn leaves, notifying the connected mobile device of any significant activity. No intruder would stay undetected and would be be loth to return to the property as the camera also benefits from active defence, setting off a loud siren with two flashing spotlights when intruders are seen.

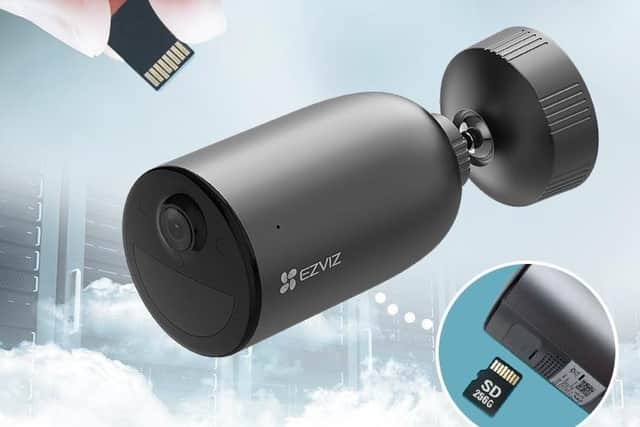

The camera can accept a micro sd card of up to 256gbThe camera can accept a micro sd card of up to 256gb
The camera can accept a micro sd card of up to 256gb

You can also adjust the sensitivity of the PIR detection, so you can get the device to ignore people walking along the pavement outside (or your neighbour in his back garden), and there is also two-way audio, allowing communication whether at home or away, ideal for verbally scaring off an unwanted visitor or instructing a delivery driver.

The two-way audio can be utilised on a smartphone or, by pre-recording a 10 second voice message that automatically plays upon human motion detection.

The EB3 is easy to use with no base station and can essentially be sited anywhere near a home without complex wiring or expensive installation fees.

Hide Ad
Hide Ad

It has a very reliable 5200 mAh battery, which only needs to be recharged every 120 days, but if it means your having to get the ladders out you might wish to avail yourself of the EZVIZ solar panel which can be purchased separately for £29.99.

The EB3 works with both Alexa and SiriThe EB3 works with both Alexa and Siri
The EB3 works with both Alexa and Siri

I easily sited this just above the EB3 to keep it permanently powered, but there is plenty of cable should the panel need to be placed in a more sun-prominent position.

The EZVIZ solar panels are made to efficiently transform sunlight into free, green power to make home security sustainable and keep costs lower.

The EB3 can also be easily managed via the EZVIZ App, on site or remotely. What’s more, live viewing can be voice-enabled with “Hey Google” or “Alexa” to check what’s happening on a bigger screen. It is highly weather-resistant, working efficiently, however severe the weather conditions, come rain or snow.

Hide Ad
Hide Ad

It also offers an enhanced viewing experience with smaller files. Compared to the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded 2K videos and reduces the size of video files by up to 50% , so meaning lower storage requirements.

The pictures/videos on my phone are pleasingly sharp with the 2K video resolution, but the app also allows you to choose between Quad HD, Full HD and Hi-Def to again save on storage space.

The app also lets you choose between four different working modes (power plugged-in, high performance, power saving and super power saving) plus an extra 'configure working mode' where you can customise the working mode over different periods via a calendar.

You can also choose between human shape detection if you only want your camera to pick up unwanted two-legged intruders, or opt for PIR Infrared Detection, which sees the device passively absorb the heat energy of animal or human and sound the alarm.

Hide Ad
Hide Ad

EZVIZ also offers its users the option to store any recordings on a local microSD card of up to 256GB (card not included) so no subscription charges are involved. However, for those who would like the security of extra data protection, there is the option to subscribe to the EZVIZ CloudPlay for fully encrypted cloud storage.

In short this a very good camera with crystal clear pictures and videos and a very good selection of features. With a good 64gb sd card now costing under a tenner, this is a good all-round security option for less than £100.

The EB3 is now available from Very and EZVIZ in grey for an RRP of £89.99 with free delivery.

What's in the boxes?

EB3 Camera

Screw Base

Power Adapter

USB Cable

Mounting plate

Drill Template

Screw Kit

Regulatory Information

Quick Start Guide

Certifications CE / FCC / UKCA / WEEE / RoSH / REACH

EZVIZ Solar Panel

Adjustable mounting bracket

Drill template and screw fixings

Quick start guide



Image Sensor 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor

Hide Ad
Hide Ad

Minimum Illumination 0.01 Lux @(F2.0, AGC ON), 0 Lux with IR

Shutter Speed Self-adaptive shutter

Lens 2.8mm@ F2.0; 131° (Diagonal), 110° (Horizontal), 58° (Vertical)

Day & Night IR-Cut filter with auto-switching


Night Vision IR Distance:15m, Color Night Vision Distance:15m

Video & Audio

Max. Resolution 2304 × 1296

Frame Rate 15fps. Self-Adaptive during network transmission

Video Compression H.265 / H.264

Video Bit Rate Quad HD; Full HD, Hi-Def. Adaptive bit rate

Audio Bit Rate Self-Adaptive

Max. Bitrate 1.5 Mbps


Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

Wi-Fi Pairing AP pairing

Protocol EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol

Minimum Network Requirement 4Mbps


Smart Alarm Smart Human Motion Detection

Customized Alert Area Supports

Two-way Talk Supports

General Function Anti-Flicker, Heart Beat, Password Protection, Watermark


Local Storage Supports microSD Card (Up to 256 GB)

Hide Ad
Hide Ad

Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)


Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)

IP Grade Weatherproof Design

Power Supply DC 5V / 2A (Purchased Separately)

Battery Capacity 5200 mAh

Power Consumption Max. 10W

Product Dimensions 105.9 × 62.8 × 62.8 mm (4.17 × 2.47 × 2.47 inch)

Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)

Weight 522 g ( 18.41 oz )

EZVIZ Solar Panel

Open Circuit Voltage 7.2V±5%

Short Circuit Current 740mA±5%

Power Voltage 6.0V±5%

Max. Power 4.2W

Max. Power Current 700mA±5%

Solar Cell Efficiency 21.6%

IP Grade IP65

Hide Ad
Hide Ad

Operation Temperature -20℃~60℃ (-4℉~140℉),Humidity 90% or less


Mechanical Data

Solar Cell Type Monocrystalline solar cells

Product Dimensions 222.6 × 155.9 × 14.9 mm (8.76 × 6.14 × 0.59 inch)

Packaging Dimensions 230 × 161 × 78 mm (9.06 × 6.34 × 3.07 inch)

Weight With package: 611 g (21.5 oz)

Panel body without bracket: 334 g (11.78 oz)
